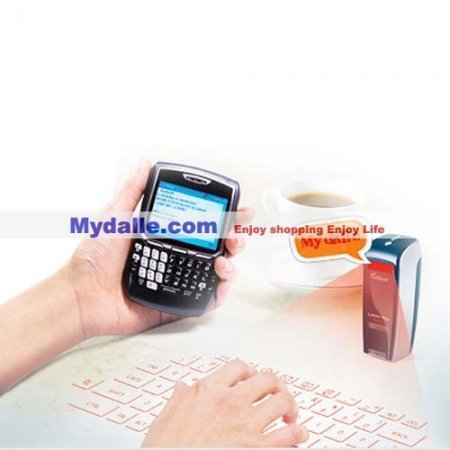

The celluon keyboard is the world's first projection keyboard capable of being fully integrated by OEMs into smart phones, cell phones, PDAs, or other mobile or wireless device. When equipped with the celluon keyboard, the OEM device uses a tiny laser "pattern projector" -- also developed by Canesta -- to project the image of a full-sized keyboard onto a convenient flat surface between the device and the user, such as a tabletop or the side of a briefcase. The user can then type on this image and Canesta's electronic perception technology will instantly resolve the user's finger movements into ordinary serial keystroke data that is easily utilized by the wireless or mobile device. The celluon keyboard Perception Chipset includes all the modules needed for a projected keyboard product including: the celluon keyboard Sensor Module, the celluon keyboard Light Source, and the celluon keyboard Pattern Projector.
The celluon keyboard is an important new application that resolves the "missing link" with mobile and wireless devices -- the ability to do "true data input". Current input solutions such as thumb keyboards or handwriting recognition, though popular, are limited in their ability to support typing-intensive applications such as document and memo creation as well as email composition. An integrated projection keyboard means that the mobile or wireless device can now support applications that previously would have only been practical with a full-sized, mechanical keyboard. This is good news for OEMs that wish to differentiate their products with important, new mobility applications, and good news for service providers, that now can offer value added services to their subscribers, including "leave your notebook PC at home."

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Specifications and dimensions

1.keybord project

Light source:Red laser diode
Keyboard Language:4 Different language(English/Germany/French/Korean)
Keyboard layout:19mm sized QWERTY layout
Keyboard size:Approx. 304mm*105mm
Keyboard position:Approx. 100mm from keyboard device
Projection surface:Non-reflective, opaque flat surface
Keystroke Sound:Built in buzzer(Mute on/off the sound)
Visibility:Visible in 1000-5000 lux ambient light

2.keybord sensor

Illumination:Visible in incandescent light of 1800 lux
Detection rate:Over 400 characters per minute
Effective key stroke:Approx. 2~5mm
Operating surface:Any flat surface

3.electrical condition

Items Specifications
Power source:The USB bus power
             Lithium ion battery power
             The DC input power
Battery capacity:
         830mAH(Max)@3.7V
                Replaceable soft-pack type
Adapter: Rating 1A @ 5V
Interface: USB 1.1 and 2.0 for PC
                Bluetooth(v1.1 class 2) for Mobile devices
Touch Switch: Switch the active/Standby mode manually
Power consumption: max. 3W@5V

4.Environment condition

Temperature operation Approx. 0~35°C
Temperature – storage Approx. -20~50°C

5.Compatiable operating Systems

- Microsoft Windows Mobile 2003 Pocket PC & Smartphone
- Microsoft Windows Mobile 5.0 Pocket PC & Smartphone
- Microsoft Windows Mobile 6.0 Pocket PC & Smartphone
- Palm OS 5.x
- RIM OS for Blackberry
- Microsoft Windows 2000/XP/Vista
- Symbian OS s60 3rd Edition (for Nokia)

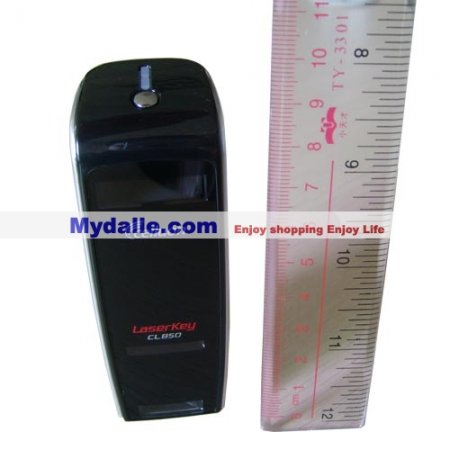

6.Size:- Approx. 37.5 * 39 * 93 mm

7.Weight:

- Approx. 110 g
